TD Series /

TD1.2

If you were only to judge this speaker by its size, you would be fooled. The TD1.2 has a personally that think it is twice the size.

Find A Dealer
No items found.

arrows & pagination

Style Guide

Raidho TD1.2

Outrageous performance in its price class

If you want the same performance as the TD1.2 in a floorstanding loudspeaker you would have to pay a lot more. Because the same money would have to go into a bigger enclosure, more drivers and a more complex crossover. This means that the performance from the TD1.2 is actually outrages in this price class.

‍

If your room is below 30 m2, you will get to High End heaven with the TD1.2. Musical immediacy, resolution and dynamics like never before from a small speaker. The TD1.2 is the one to beat with staggering performance wrapped in a very elegant and stylish look.

‍

Optional stand in silver and black.

Image of the back from a Raidho Acoustics Driver

Raidho Series X
‍Drive Unit

This drive unit is not only highly advanced and built in-house in Denmark, but is also a piece of art.

The result is that the speakers disappear even more from the equation, drawing a soundscape without audible distortion and with a pitch-black background that made the instruments stand out and create holographic sound stage.

Read More

Raidho proprietary ribbon tweeter

Premium tweeter

Solid aluminum baffel for optimum stiffness

Classy baffel

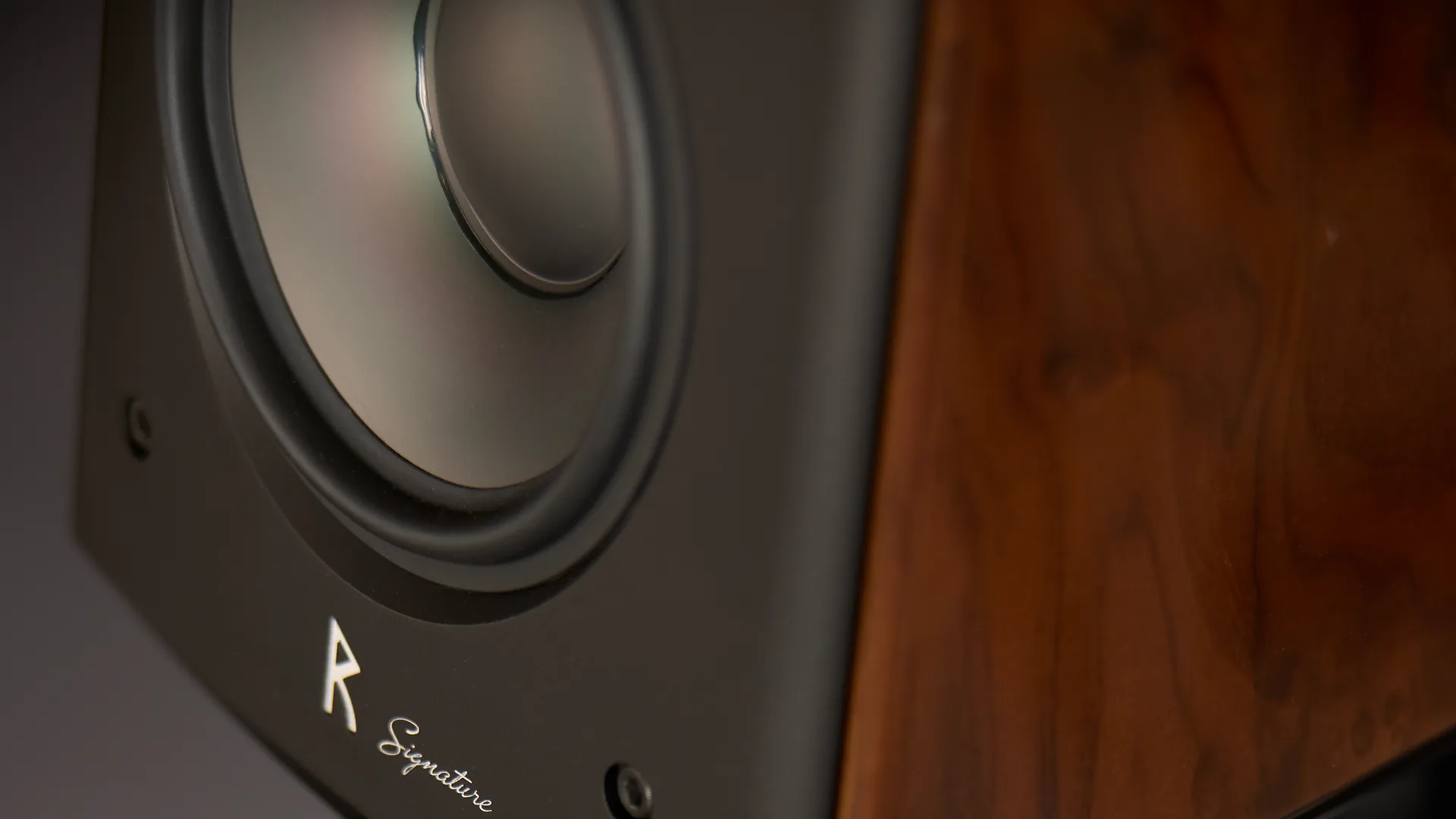

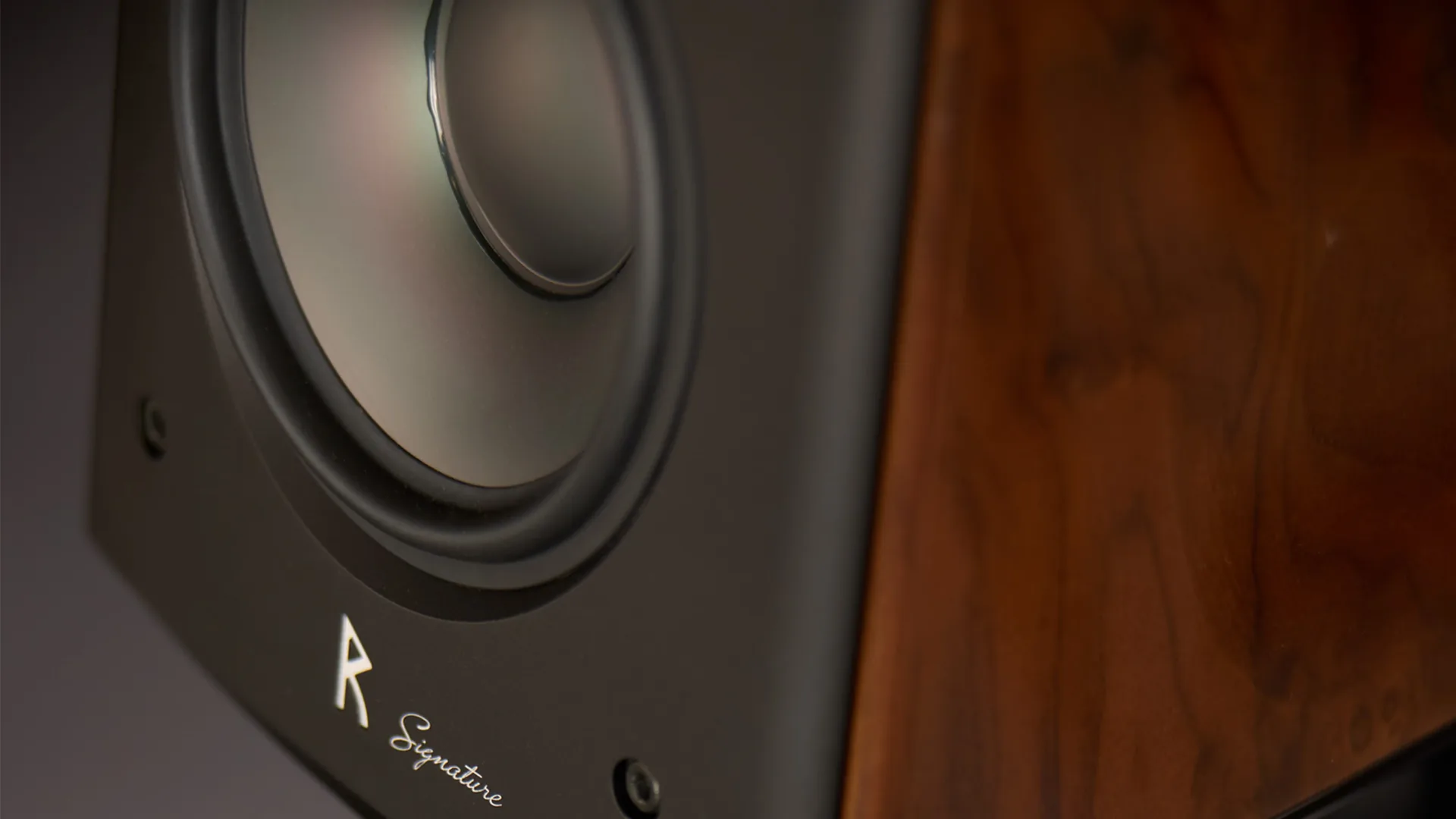

6,5" driverunit with tantalum and diamond coating

Driverunit

Bass reflex port with wings eliminating port noise

Bass port

Optional Raidho stand with soft suspension

Stands

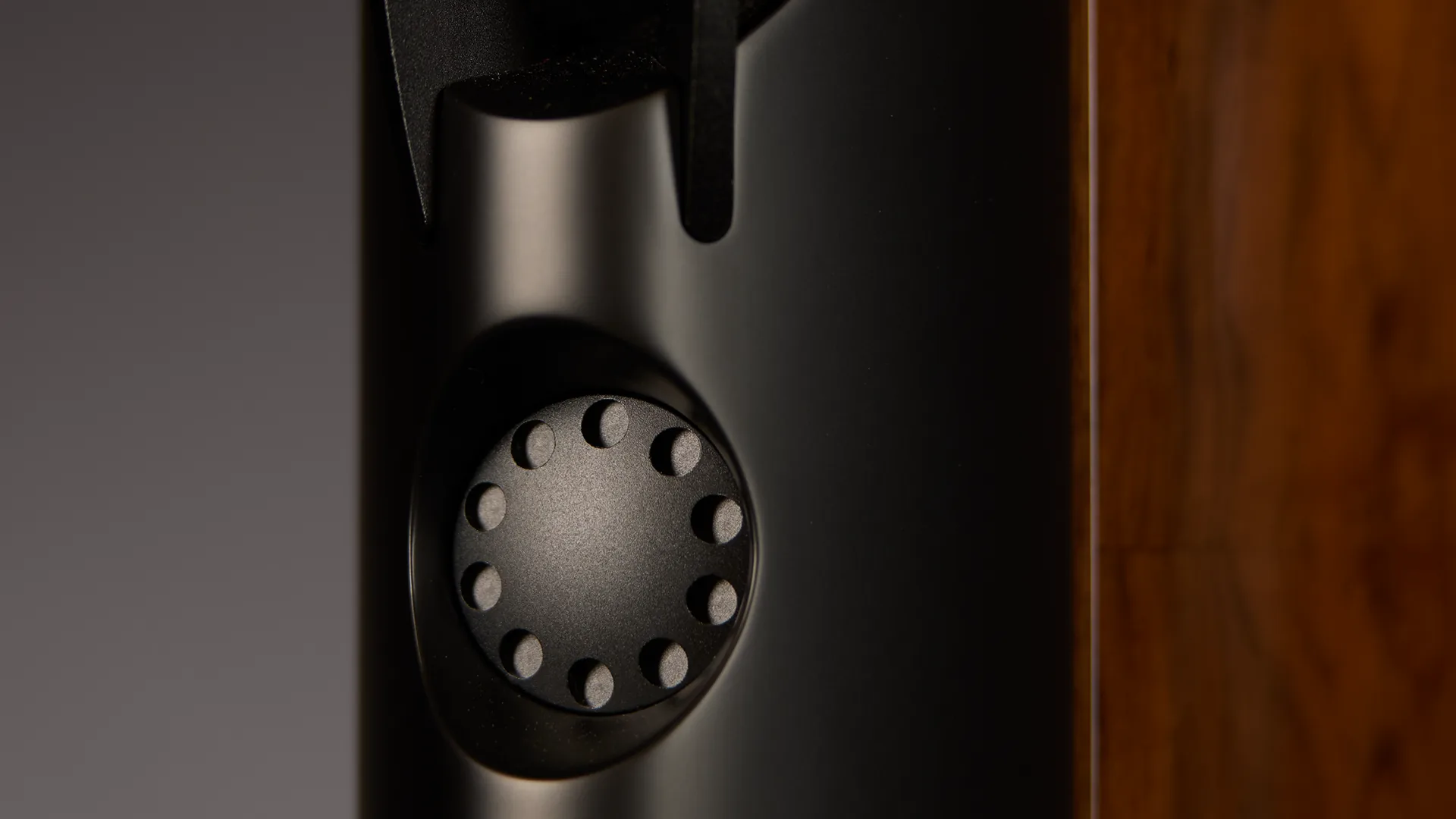

Proprietory single wire terminals

Wire terminals

Optional Raidho stand - Integrated decoupleing feet

Intergrated Stands

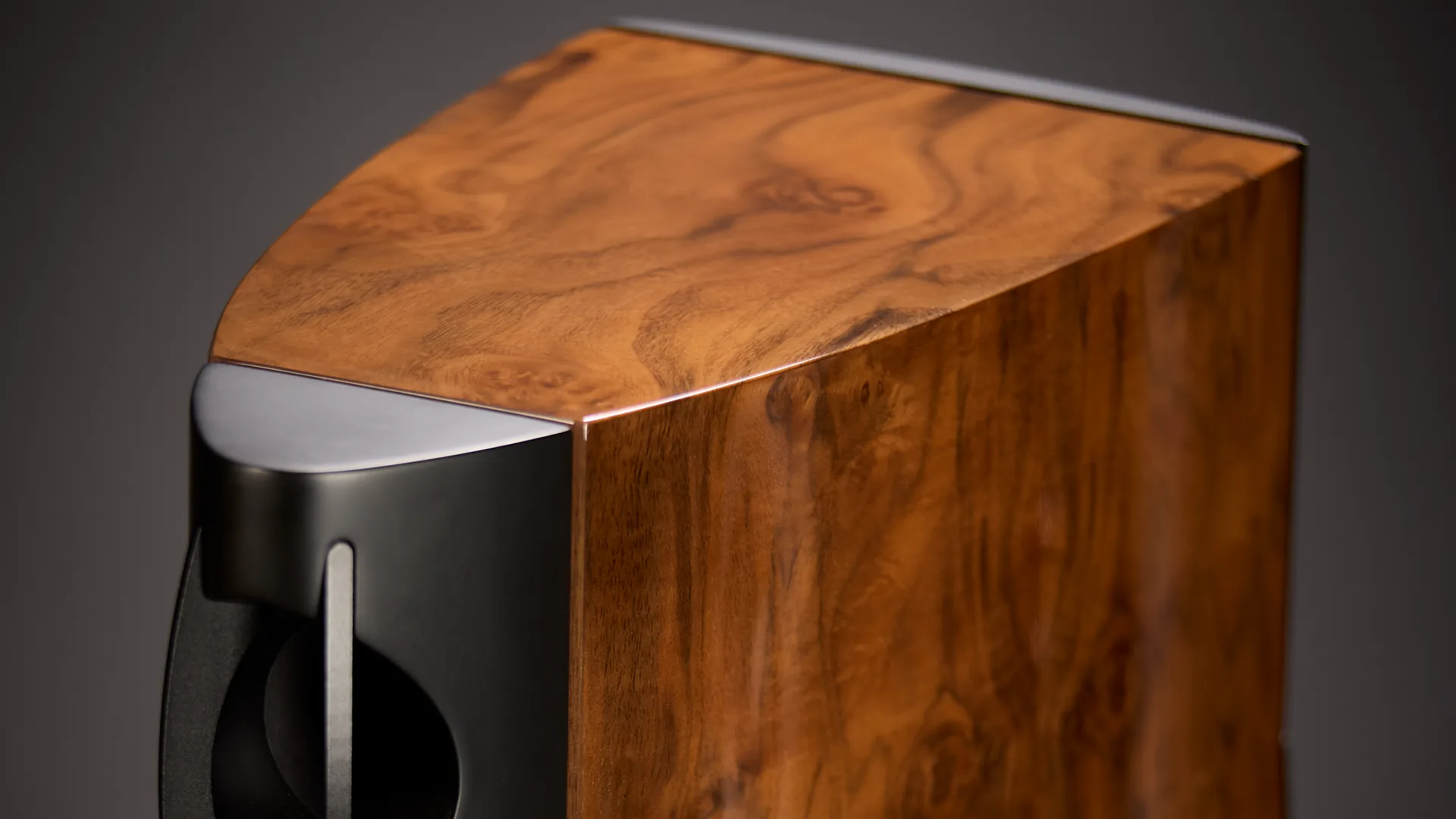

Curved cabinet for minimum standing waves and resonances

Cabinet

Image of a Raidho Driver from the back

Raidho Series TD
‍Drive Unit

This is truly a unique and revolutionary drive unit! 100% developed and build inhouse by Raidho. The goals was simple: no coloration and outstanding dynamic capabilities.
‍
The motor comprises of a very strong magnet (N52 Neodymium) with an unseen even magnet field, coupled with an underhung titanium voice coil. This arrangement gives the drive unit the most powerful underhung magnet system in the world. The benetfit from an underhung voicie coil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.

Read More
Image of a Raidho Tweeter

The Legendary Raidho Ribbon Tweeter

Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a Planar Magnetic Tweeter due to the tracks in the foil. The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extreme low weight of the foil (20 milligram). The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazing clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!

Read More

Our Awards

No items found.
No items found.

Photo Gallery

What the press is saying about the

Raidho TD1.2

THE ABSOLUTE SOUND:

“The TD1.2 is the highest-performing, small, stand-mounted two-way loudspeaker I have heard—and I have heard some of the best. Its winning combination of exceptional overall resolution, expansive soundstaging, and musical swing in the form of lightning-fast and robust dynamics is just wonderful. This is a speaker for the two-way enthusiast who is willing to acquire the best of breed.”

Quote

HIFI PLUS:

“Listen and you might discover hidden musical gems in the most unlikely places; listen and you might just discover the heights a great guitarist can reach in terms of musical expression.”

Quote

HIFI STATEMENT:

“Wow - what a speaker! Detail, workmanship and the sonic result set new standards.”

Quote

Technical Information

Dimensions

Topology
2 way
Bass Loading
Bass reflex Port in rear, Impulse optimized - Conform
Drivers

1 x Raidho TD Ribbon Tweeter

1 x 6,5” Raidho Tantalum

Diamond midbass

Crossover Point
2.4 Khz stepped slope
Frequency Range
45Hz - 50 kHz +/-3 dB
Sensitivity
87dB 2,83 V/m
Nominal Impedance
6 ohm
Power Requirement
25 -125 Watts
Finish
Piano Black, Walnut burl veneer or any colour to order
Dimensions WxHxD, mm
200x360 x400
Enclosure WxD, mm
Weight, kg
13
Amplification
Width external, cm
A & B
70,5
Width inside, cm
A & B
62,8
Depth, cm
A & B
49
Height external, cm
A 12,4
B 25,2
Height inside, cm
A 8,7
B 21,5
Maxload,kg
A & B
90
Weight A, kg
12,5
Weight B, kg
16
