TD Series /

TD2.2

If you imagine that the TD2.2 is just a TD1.2 with another bass driver, you would be mistaken! The TD2.2 takes the TD-series to the next level.

Find A Dealer
No items found.

arrows & pagination

Style Guide

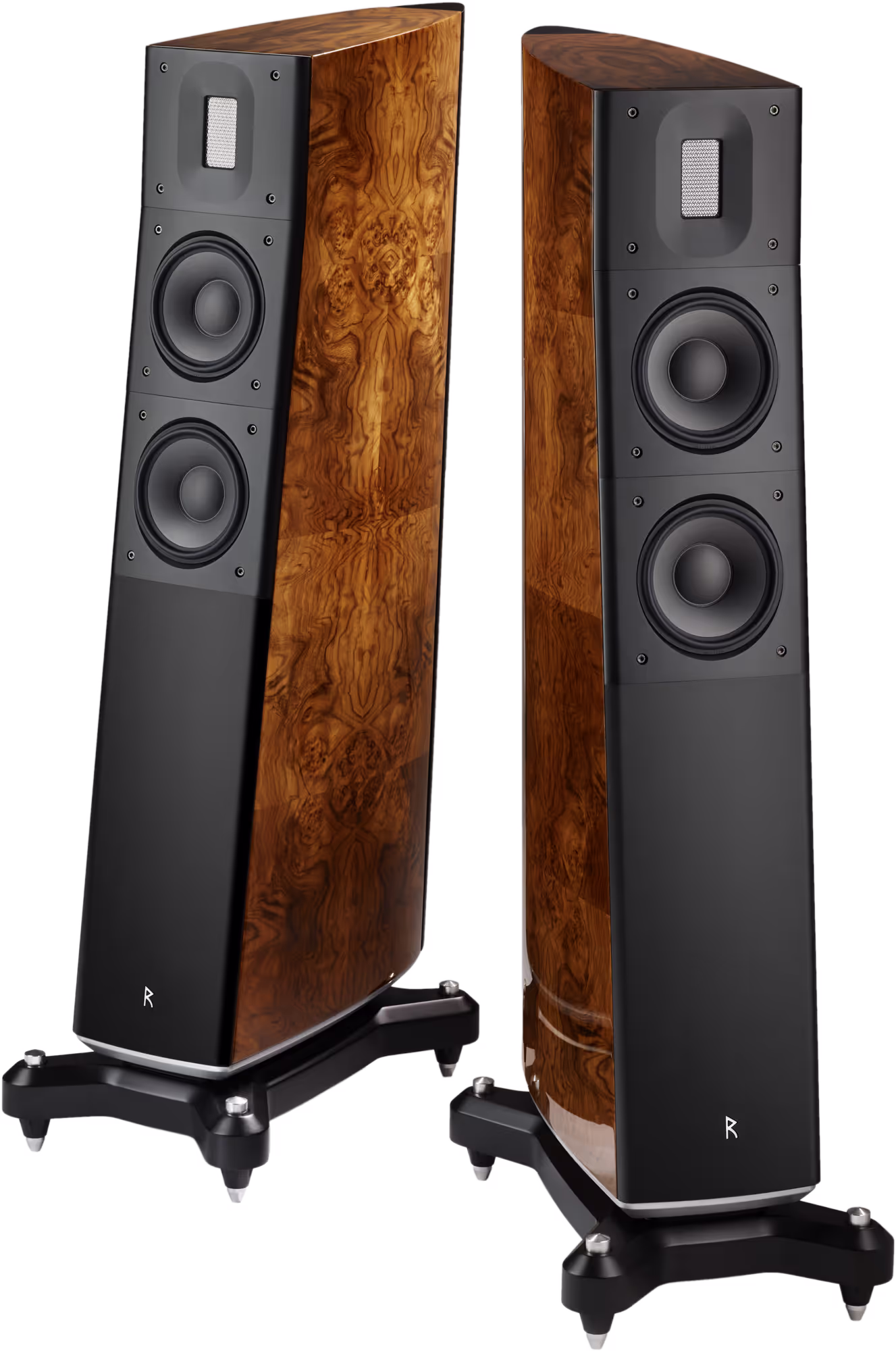

Raidho TD2.2

Very coherent sound from top to bottom

When you listen to this speaker you immediate think: How could you possible what anything more than this? And you would be right. But then please do not listen to the models above this.

‍

A Raidho special among floorstanding loudspeakers is the use of 2,5 way construction. This guarantees a very coherent sound from top to bottom as both drive units puts out bass, but only the upper does midrange.

‍

Decoupling of the speakers is integrated into the feet. So, there is no need for spikes to achieve the best result, because this is actually done with ceramic balls, on which the speakers rest on.

Image of the back from a Raidho Acoustics Driver

Raidho Series X
‍Drive Unit

This drive unit is not only highly advanced and built in-house in Denmark, but is also a piece of art.

The result is that the speakers disappear even more from the equation, drawing a soundscape without audible distortion and with a pitch-black background that made the instruments stand out and create holographic sound stage.

Read More
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
Image of a Raidho Driver from the back

Raidho Series TD
‍Drive Unit

This is truly a unique and revolutionary drive unit! 100% developed and build inhouse by Raidho. The goals was simple: no coloration and outstanding dynamic capabilities.
‍
The motor comprises of a very strong magnet (N52 Neodymium) with an unseen even magnet field, coupled with an underhung titanium voice coil. This arrangement gives the drive unit the most powerful underhung magnet system in the world. The benetfit from an underhung voicie coil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.

Read More
Image of a Raidho Tweeter

The Legendary Raidho Ribbon Tweeter

Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a Planar Magnetic Tweeter due to the tracks in the foil. The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extreme low weight of the foil (20 milligram). The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazing clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!

Read More

Our Awards

No items found.
No items found.

Photo Gallery

What the press is saying about the

Raidho TD2.2

THE ABSOLUTE SOUND:

“The TD2.2 is a very musically involving speaker. From its crystal clear, fatigue-free treble and midrange down to its fabulously robust bass, the TD2.2 has a wonderful combination of detail retrieval, tonal richness, and solid musical foundation. Music shines vividly and evocatively through the Raidhos and invites you to listen and listen some more. Recommended.”

Quote

I-FIDELITY.NET:

“The easily countable group of dream speakers gets a profound addition: the Raidho TD2.2 is joining the illustrious circle. Soundwise it excels by its holographic reproduction, inner coherence and a wonderfully detailed imaging that’s largely due to the sophisticated in-house designed drivers.” Test result: Outstanding

Quote

HIFI PIG:

“The easily countable group of dream speakers gets a profound addition: the Raidho TD2.2 is joining the illustrious circle. Soundwise it excels by its holographic reproduction, inner coherence and a wonderfully detailed imaging that’s largely due to the sophisticated in-house designed drivers.”

Quote

Technical Information

Dimensions

Topology
2,5 way
Bass Loading
Bass reflex Port in rear, Impulse optimized - Conform
Drivers

1 x Raidho TD Ribbon Tweeter

1 x 6,5” Raidho Tantalum

Diamond midbass

1 x 6.5” Raidho Tantalum Diamond bass

Crossover Point
400Hz and 2.4 kHz stepped slope
Frequency Range
32Hz - 50 kHz +/-3 dB
Sensitivity
88dB 2,83 V/m
Nominal Impedance
2,83 V/m
Power Requirement
50 -150 Watts
Finish
Piano Black, Walnut burl veneer or any colour to order
Dimensions WxHxD, mm
315x1150x505 including feet
Enclosure WxD, mm
200 x 505
Weight, kg
45
Amplification
Width external, cm
A & B
70,5
Width inside, cm
A & B
62,8
Depth, cm
A & B
49
Height external, cm
A 12,4
B 25,2
Height inside, cm
A 8,7
B 21,5
Maxload,kg
A & B
90
Weight A, kg
12,5
Weight B, kg
16
