TD Series /

TD3.2

The beautiful looks of the TD3.2 holds a 3-way speaker that can deliver real life dynamics and authentic sound that is as live and true as the artist wanted it to be.

Find A Dealer
No items found.

arrows & pagination

Style Guide

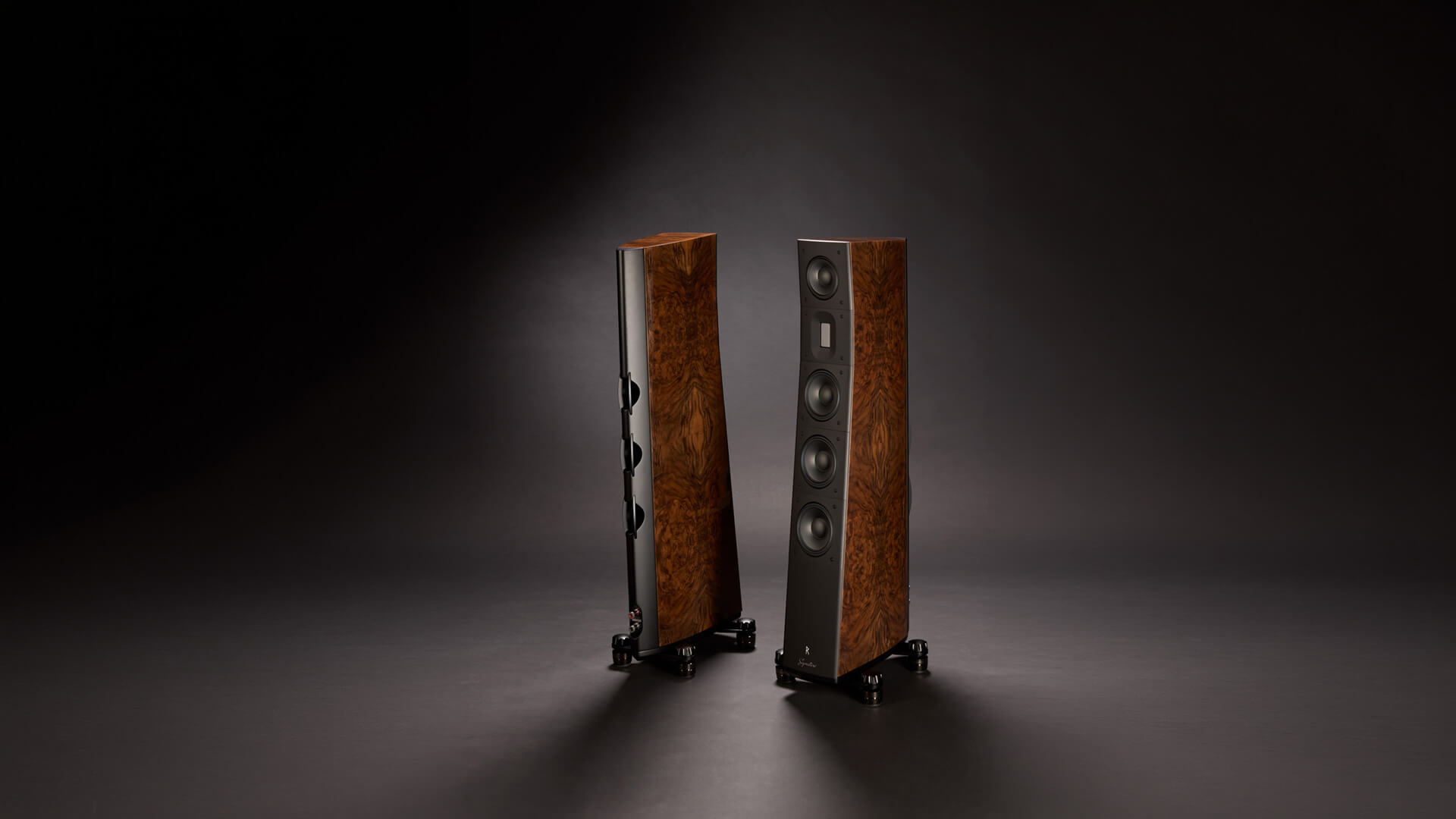

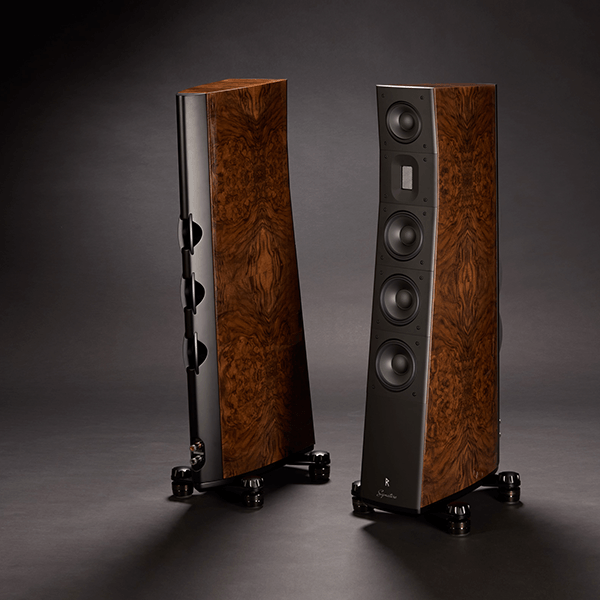

Raidho TD3.2

This model has the power to surprise with both looks and sound.

The TD3.2 is capable of delivering a huge soundstage with authentic and organic sound that really captures the listener. A true 3-way design built upon our new drivers including the 5” midrange used in the TD3.8, and the updated TD-ribbon tweeter.

‍

Decoupling of the speakers is integrated into the feet. So, there is no need for spikes to achieve the best result, because this is actually done with ceramic balls, on which the speakers rest on.

‍

The TD3.2 has its own dedicated 5,25” midrange drive unit which sits in its own enclosure. The result is much more transparency and detail in the very critical midrange band.

Image of the back from a Raidho Acoustics Driver

Raidho Series X
‍Drive Unit

This drive unit is not only highly advanced and built in-house in Denmark, but is also a piece of art.

The result is that the speakers disappear even more from the equation, drawing a soundscape without audible distortion and with a pitch-black background that made the instruments stand out and create holographic sound stage.

Read More
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
Image of a Raidho Driver from the back

Raidho Series TD
‍Drive Unit

This is truly a unique and revolutionary drive unit! 100% developed and build inhouse by Raidho. The goals was simple: no coloration and outstanding dynamic capabilities.
‍
The motor comprises of a very strong magnet (N52 Neodymium) with an unseen even magnet field, coupled with an underhung titanium voice coil. This arrangement gives the drive unit the most powerful underhung magnet system in the world. The benetfit from an underhung voicie coil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.

Read More
Image of a Raidho Tweeter

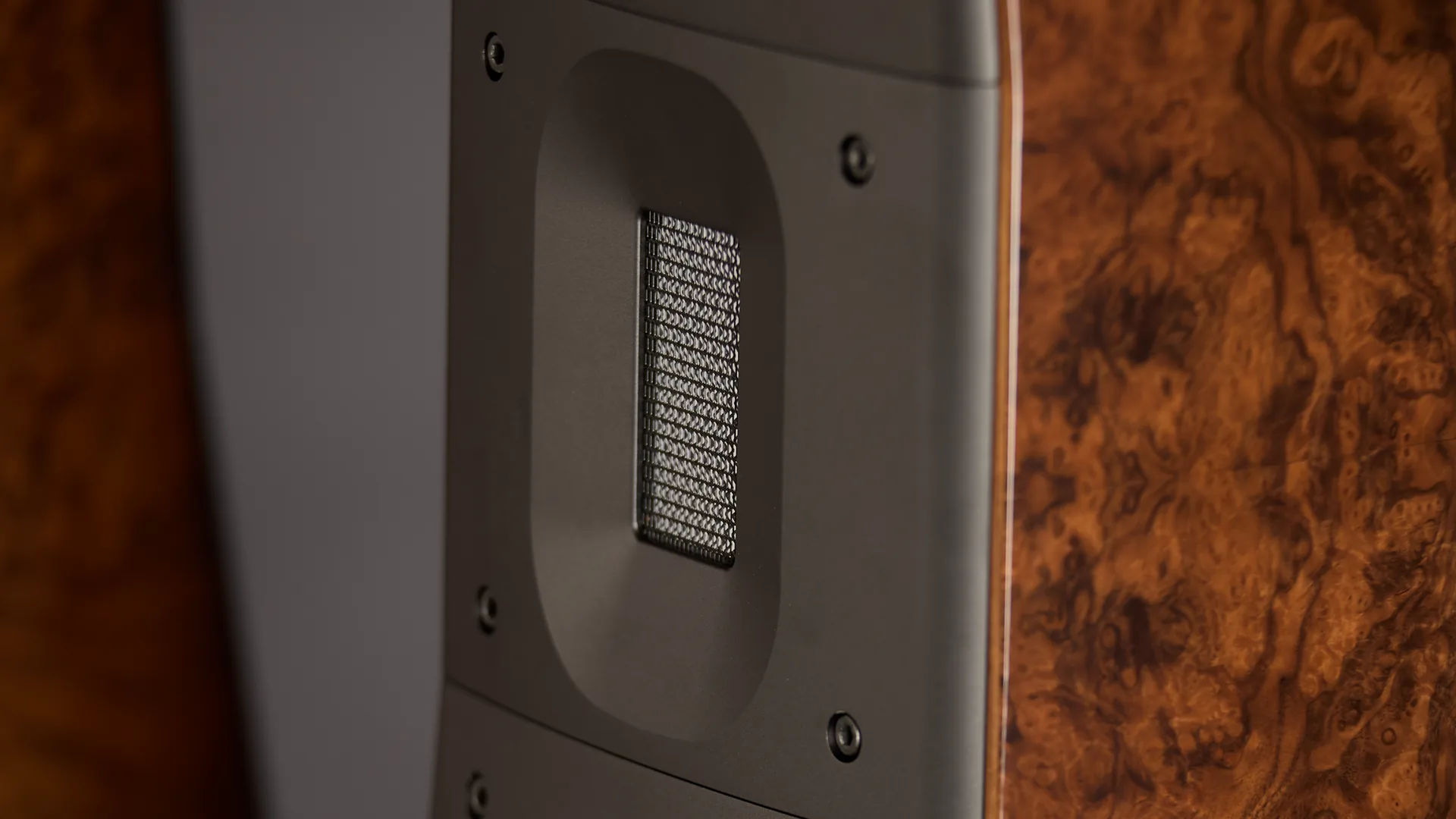

The Legendary Raidho Ribbon Tweeter

Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a Planar Magnetic Tweeter due to the tracks in the foil. The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extreme low weight of the foil (20 milligram). The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazing clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!

Read More

Our Awards

No items found.
No items found.

Photo Gallery

What the press is saying about the

Raidho TD3.2

Quote

Technical Information

Dimensions

Topology
3 way

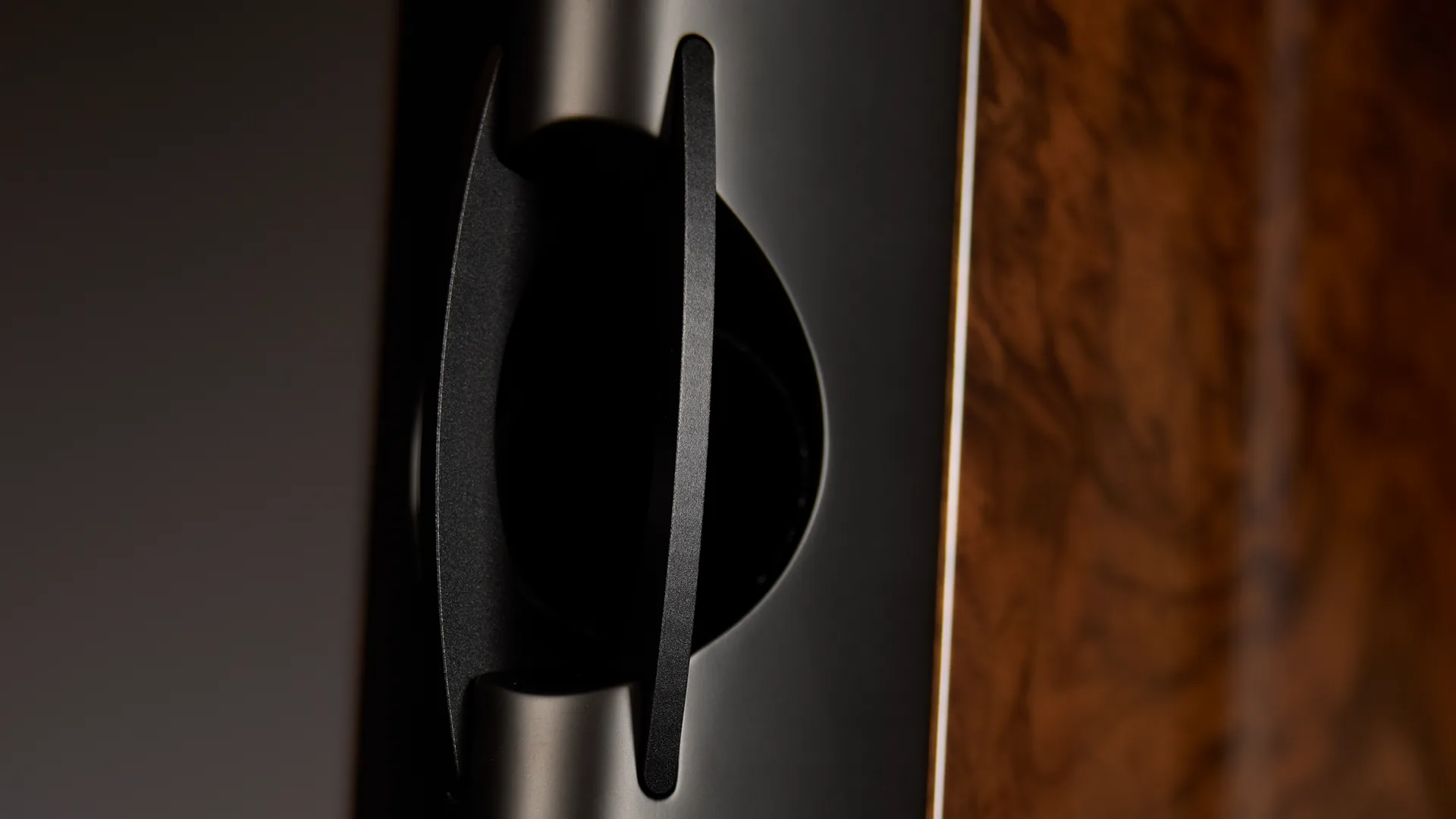

Bass Loading
Bass reflex Port in rear, Impulse optimized
Drivers

1 x Raidho TD Ribbon Tweeter

1 x 5” Raidho

Tantalum Diamond midrange

3 x 6.5” Raidho Tantalum Diamond bass

Crossover Point
400Hz and 2.4 kHz stepped slope
Frequency Range
28Hz - 50 kHz +/-3 dB
Sensitivity
90dB 2,83 V/m
Nominal Impedance
4 ohm
Power Requirement
50 -300 Watts

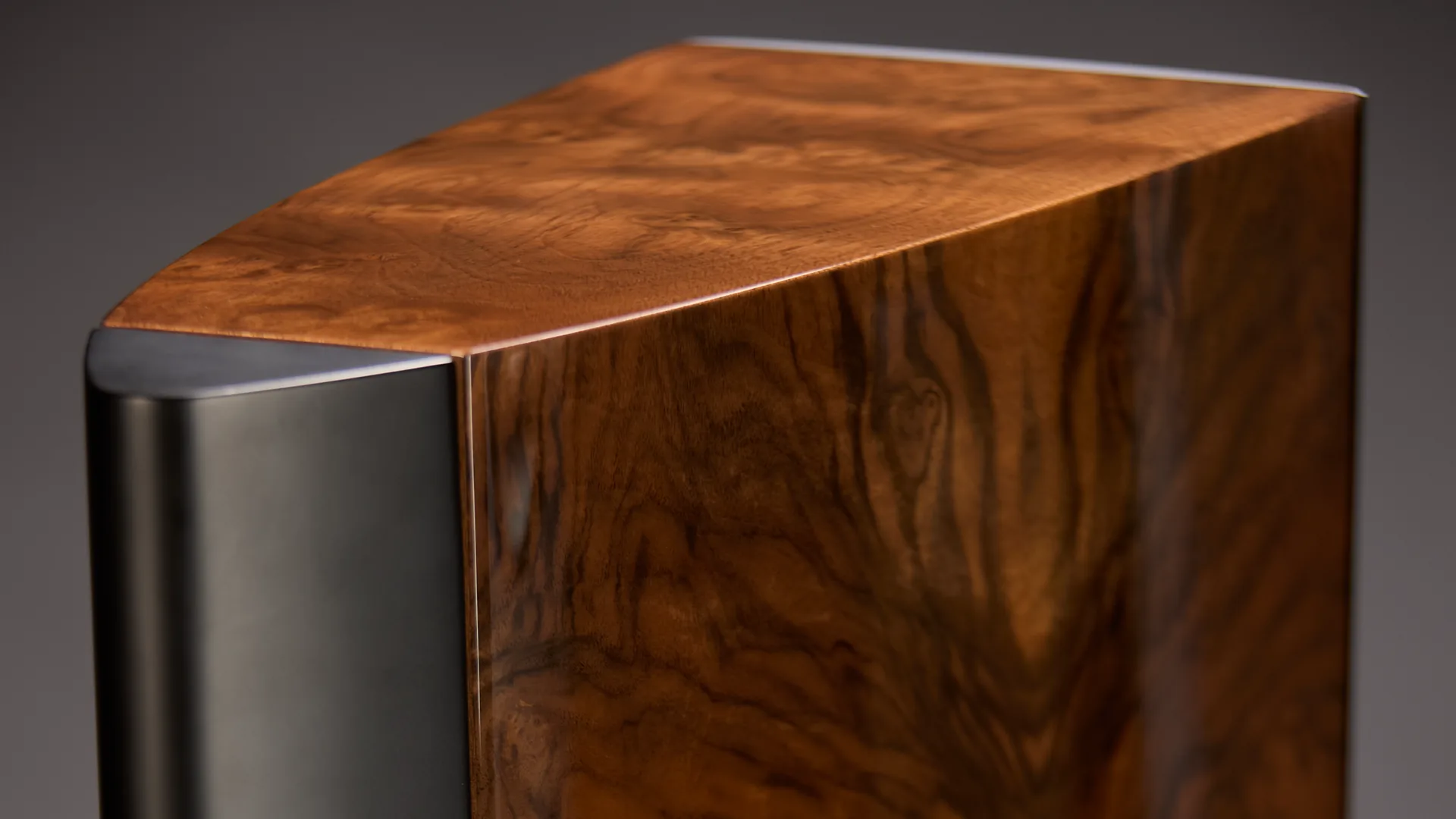

Finish
Piano Black, Walnut burl veneer or any colour to order
Dimensions WxHxD, mm
315x1235x505 including feet
Enclosure WxD, mm
200 x 505
Weight, kg
55
Amplification
Width external, cm
A & B
70,5
Width inside, cm
A & B
62,8
Depth, cm
A & B
49
Height external, cm
A 12,4
B 25,2
Height inside, cm
A 8,7
B 21,5
Maxload,kg
A & B
90
Weight A, kg
12,5
Weight B, kg
16
